Sheet metal shell

The sheet metal shell is made of 1.5mm SGCC galvanized steel sheet, the inner layer is sprayed with zinc-rich base powder, and the
surface layer is sprayed with DuPont outdoor plastic powder for protection . The service life is guaranteed for more than 10
years ;

Explosion-proof glass

6mm AR antireflection glass, imported glass sheet, using AR coated anti -glare ; transparent light of 97%, the reflection rate of
3% ; separated from the 99% of solar UV rays, from 52% of the solar heat ; proof steel;

Bright LCD screen

Outdoor special bright LCD screen, display area 1209*680mm;

LED direct backlight, brightness 2000cd/m2, visible in sunlight

Screen resolution HD 1920*1080;

Automatic photosensitive probe, adjust screen brightness according to ambient light, save energy and reduce light pollution;

Playback system

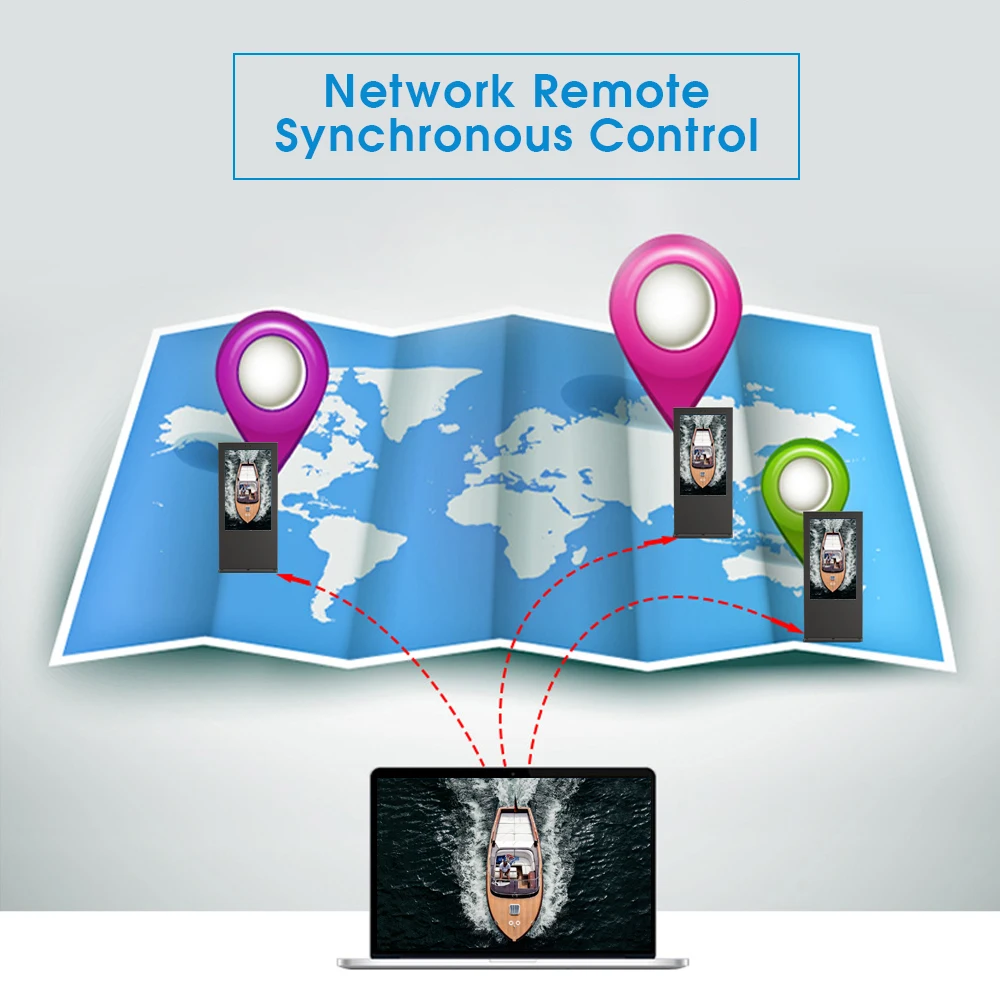

Android networked information distribution system; supports various mainstream audio and video formats such as pictures, videos,
texts; supports wired/wireless WiFi network transmission;

Support single player card playback;

Electronic control system

Leakage protection switch, leakage protection, overvoltage protection;

Microcomputer time switch, control the start and stop of the machine by time-sharing;

Lightning protection device, lightning protection level C, to prevent instantaneous lightning strikes;

Taiwan Mingwei industrial grade power supply, stable and reliable power supply;

cooling system

The intelligent cold and warm industrial air conditioner is used to control the temperature, and the display is not blackened in
the outdoor environment of -40-+55 degrees, and the whole machine works normally;

Professional custom-developed industrial air conditioners that fully match the power consumption of the whole machine;

Automatic temperature sensing system ensures that the internal temperature is within 0-40 degrees ; high-precision filtration
system ensures that no dust enters the machine, and the whole machine protection level reaches IP65;

Test system

Spray waterproof test; high and low temperature test; solar radiation test;

Machine aging test;

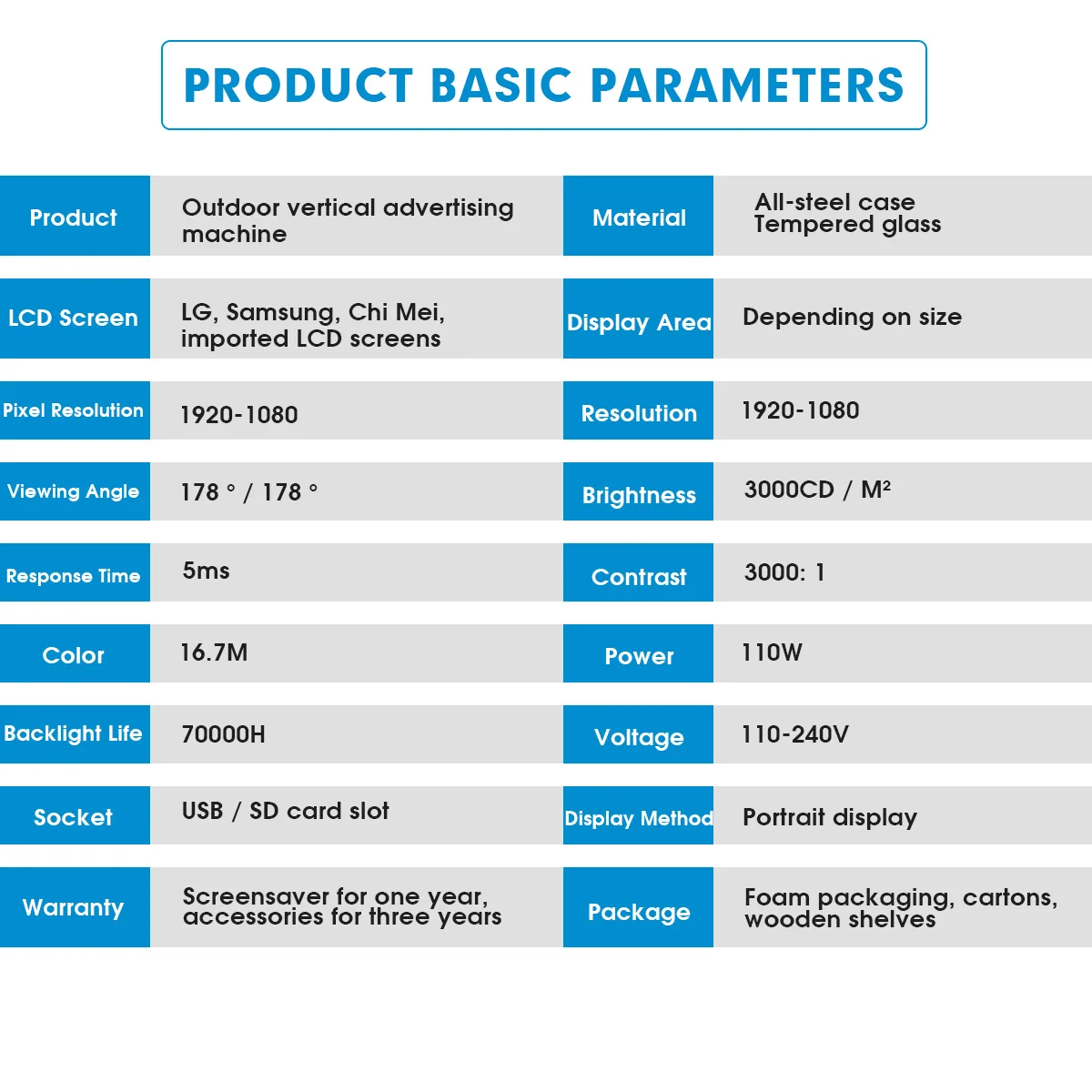

composition

parameter

Display

size

55 inches

Display area

1209*680mm

Zoom

16 : 9

Resolution

1920*1080

brightness

20 00cd/m2

Contrast

4 000 : 1

Viewing angle

178° horizontal / 178 ° vertical

Android motherboard

processor

Rockchip RK 3568 quad core

RAM

2GB

storage

Standard 8G can be expanded to 32G

interface

USB*4 RJ45*1

shell

Protection level

IP 6 5

weight

200 KG

Installation method

Landing

Protective glass

6 mmAR glass

Working parameters

Video interface

VGA , HD CABLE

audio port

I/O input and output

Brightness control

Automatic photosensitive system

temperature control

Intelligent air conditioner

Operating temperature

- 40 °C to + 5 5°C

Working humidity

5% to 100%

power supply

220V

power

900 W
