Products Description

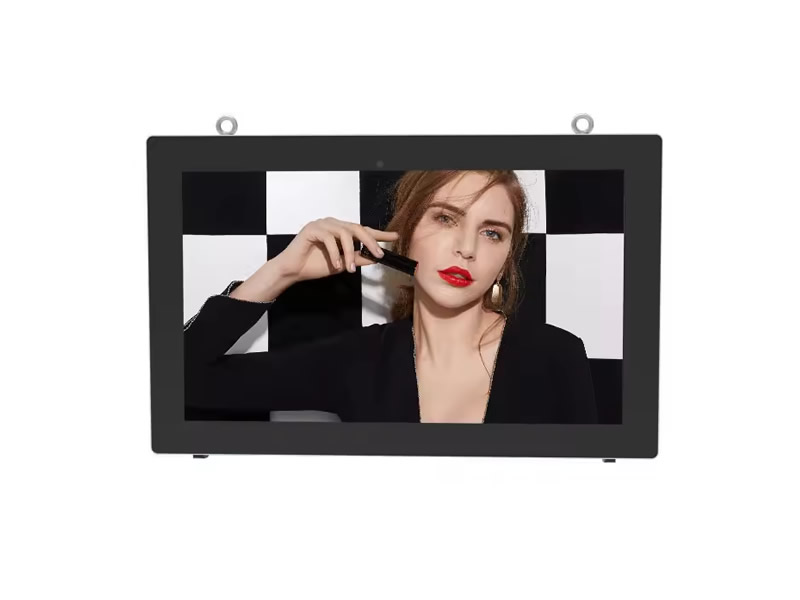

Outdoor Wall Mounted digital signage have 32"/43"/49"/55"/65"/75" LCD screens refers to digital display units designed specifically for outdoor use and mounted onto walls or other vertical surfaces.
These signage solutions offer businesses and organizations a versatile and effective way to communicate with their target audience in outdoor environments.
The Outdoor Digital Signage solutions offer remote content management capabilities, allowing users to easily update and schedule content from a centralized location, saving time and effort.
To ensure visibility in bright outdoor environments, Outdoor Wall Mounted Digital Signage typically incorporates high-brightness 2000nits LCD screens that deliver crisp and vibrant content, even in direct sunlight.
Tags: Outdoor Wall Mounted Digital Signage Wall Mounting Digital Signage 43inch Wall Mounting Digital Signage
Technical parameter
65 inch High Bright Outdoor E-
Intelligent Runway Digital Sig
Intelligent Runway System
MacDonald LCD Digital Menu Boa
Screen Size and Input Power
| Model NO. | OWM32A | OWM43A | OWM49A | OWM55A | OWM65A | OWM75A |
| Screen Size | 32” | 43" | 49" | 55" | 65" | 75" |
| Input Power | 180W | 230W | 350W | 400W | 490W | 950W |
Screen Parameter
| Resolution | 1080P (1920*1080) 4k(3840*2160) optional |
| Color depth | 16.7M |
| Aspect Ratio | 0.672916667 |
| Brightness | 2000cd/m2 (Clearly under the sun), 2500cd/m2 Optional |
| Contrast | 166.6673611 |
| Viewing Angle | Viewing Angle |
| Response Time | 5ms |
| Life Cycle | ≥60000 hours |
Mainboard Parameter
| CPU | RK3566S, quad-core, up to 1.8GHz |
| RAM/ Storage | Standard : 2GB+16GB Optional : 4GB+32GB, 8GB+64GB, 2GB+32GB, 8GB+128GB |
| Operate System | Android 11, Windows OS Optional |
| Connectivity | Support RJ45 Ethernet, 2.4G WIFI, 5G WIFI Optional, Bluetooth |
| Video | Support AVI, rm, rmvb, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG FLV, ASF, TS, TP, 3GP, MPG and etc. |
| Image | Support BMP,JPEG,PNG,GIF etc. |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and etc. |
| USB | 1-way USB-3.0 HOST, 1-way USB 3.0 OTG, 5-way extended USB port |
| HDMI | Support HDMI output, up to 4K |
| Content Management | Cloud Platform, APP, U-Disk / SD-Card |
Other Parameter
| Input Voltage | AC100-240V |
| Lightning Protector | 10 KV |
| Timing Function | Microcomputer timer switch ON/OFF the machine in different periods |
| Auto-Cool System | Automatically adjust the air cooling system, energy saving, and extend fan service life. |
| Switch | Air Protection Switch |
| Production | OCP, OVP, RCD |
| Product Color | White / Black / Silver / Grey or Customized Camera Optional |
| Speakers | 2x10W Speakers |
| Humidity | 10%~90% |
| Working Temperature | -20℃~50℃ |
| Material | Steel, Tempered Glass |
| Certificate | ISO9001, CE, RoHs, FCC |
| Includes | Remote Controller, key, 5 feet Power Cord |
| Warranty | 1 Years (One-one VIP Life-Long Service, Phone & Video Calls Available) |
