Products Description

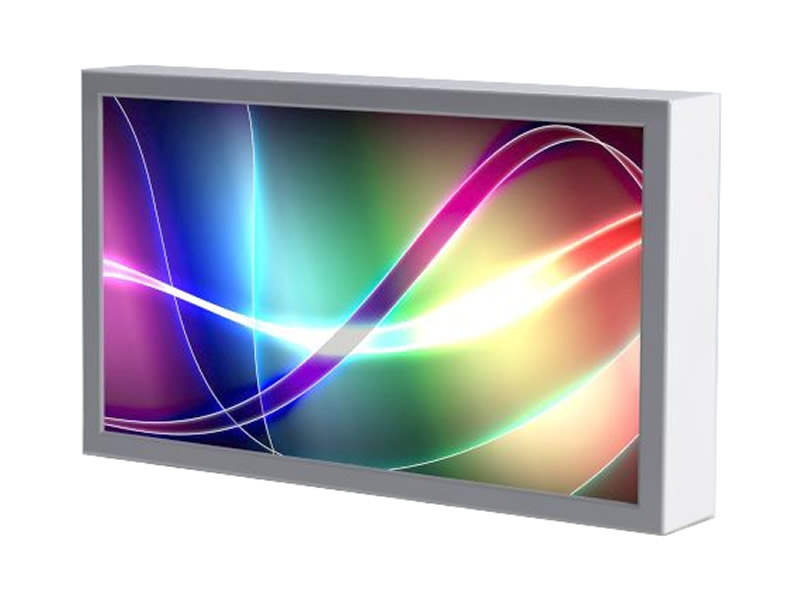

The USMART-55 is an industrial-grade outdoor LCD Monitor that is easily viewable in direct sunlight and designed for 24/7, all-weather operation in all climates. Utilizing the latest in edge-lit technology from LG Display®, the USMART-55 reduces power consumption by over 50% compared to all other outdoor LCD monitors of this size.
The tamper-proof aluminum housing has no exposed fans or air filters, and is protected by laminated anti-reflective cover glass, making the USMART-55 ideal for unsupervised, public environments. This full-outdoor monitor requires no secondary housings or enclosure and is weatherproof from all sides. Available with multi-point touch functionality.
Tags: touch screen information kiosk Wall Mounting Digital Signage LCD Video Wall
Technical parameter
65 inch High Bright Outdoor E-
Intelligent Runway Digital Sig
Intelligent Runway System
MacDonald LCD Digital Menu Boa
Key Performance Specifications
- Sunlight viewable 2500 nit screen brightness
- Extremely low power consumption
- Extended -40 to +80c operating temperature range
- 1920 x 1080 full HD resolution
- Rated for 24/7 commercial use w/60,000 hr. rated life
Key Features
- Automatic dimming w/ambient light sensor
- Weatherproof IP55 rated housing
- Built-in secure cable management with direct-conduit entry
- Condensation/maintenance free environmental system
- Laminated anti-reflective cover glass
- Built-in fail-over Media Player w/USB port
- Quarter-wave polarizer allows for portrait mode viewing with
polarized sunglasses. - RS-232 (Ethernet optional) control ports and local IR remote control
- Comprehensive 3 year warranty (5 year extended warranty optional)
Connectivity
- HDMI (x1)
- Analog RGB (x1)
- DVI (x1)
- Composite Video (x1, BNC)
- HDBase-T (optional)
- Ethernet H.264/5 (optional)
- USB port for fail-over media
- RS-232 monitoring and control
- Audio out (stereo 3.5mm jack)
Display Specifications
- Diagonal size: 55 inches (1397mm)
- Resolution: 1920 x 1080 RGBW(x4) pixels
- Luminance: 2500 cd/m2 (nits)
- Contrast Ratio: 4000:1
- Colour depth: 16.7 million colours (8 bit)
- Viewing angle: R/L 178 min, U/D 178 min.
- Response time: 12 ms. (typical)
Electrical Specifications
- Supply Voltage: 120 VAC
- Power Consumption: 225 watts (at full brightness)
- CSA approved site-replaceable IP67 power supply
Environmental Specifications
- Operating temperature: -40 to +80c
- Humidity: 5-95% (non-condensing)
- Direct-sunlight exposure rated
- Ingress rating: IP55, IP65 optional
Mechanical Specifications
- Dimensions: 50.8×30.0x5.4(d) in. (1290.3×762.0x137.1mm)
- Weight: 110 Lbs. (50 kg)
- Mounting provisions: VESA 600 x 600 mm on rear
