Two splicing advertising digital signage

Two splicing advertising kiosk digital signage 55 inch 1000~5000 nit slim Android lcd outdoor vertical led display
Send Inquiry
Description
Argument
Products Description

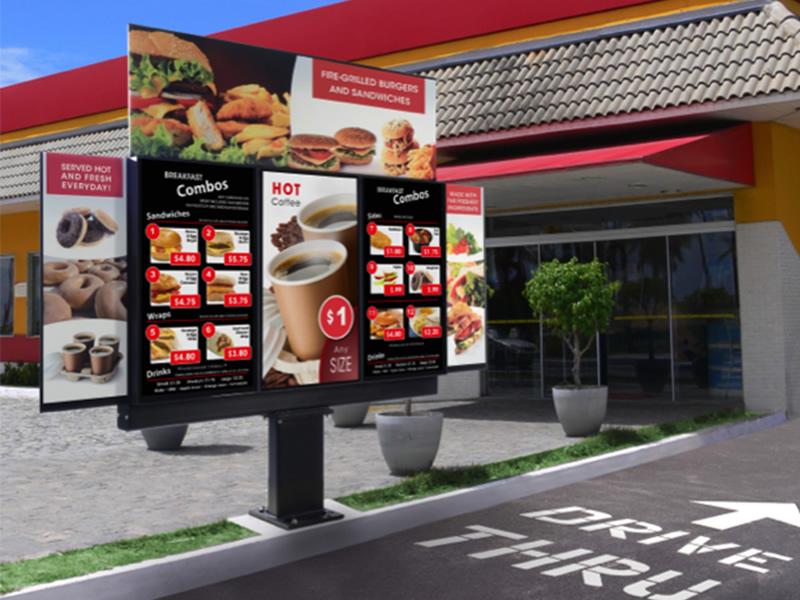

55inch LCD Digital Drive-Thru Menu Boards(图1)
  •

32px;">

Slim&Light
The OD series is composed of a single display that has a light and slim design. It can be easily customized to suit various external environments with no need for separate casing.

  •


Easy Integration & Customizable
The OD series outdoor displays are ready to be customized to meet your business needs. From outdoor menu boards to kiosks, the
OD series signage are mount ready and optimized for customers, based on your industry and use.

55inch LCD Digital Drive-Thru Menu Boards(图2)
55inch LCD Digital Drive-Thru Menu Boards(图3)
  •




Bright & Brilliant
The OD series possess powerful brightness of 3,000nits, providing clear and vivid picture quality even under direct sunlight.

  •




Wide Viewing Angle IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

55inch LCD Digital Drive-Thru Menu Boards(图4)
55inch LCD Digital Drive-Thru Menu Boards(图5)
  •



Long Lasting Brightness
By adding more LED units, OD series operates brighter at a lower temperature, thereby lasting longer than conventional products.

  •



Visible with Polarized   Sunglasses
QWP* enables clear visibility even  when  the viewer is wearing polarized sunglasses.

55inch LCD Digital Drive-Thru Menu Boards(图6)
55inch LCD Digital Drive-Thru Menu Boards(图7)



Secured Protection with IP56 Design
The OD Series is IP56 protected. This means it is designed to withstand water and other weather like damaging effects of the  sun, rain, snow, dust and wind. This is an essential feature for outdoor displays.



Protective Glass
The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.
55inch LCD Digital Drive-Thru Menu Boards(图8)
55inch LCD Digital Drive-Thru Menu Boards(图9)
User Convenient
The global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installation and maintenance costs.
Web Monitoring
User-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.
55inch LCD Digital Drive-Thru Menu Boards(图10)


Tags:

Technical parameter
65 inch High Bright Outdoor E-

65 inch High Bright Outdoor E-

Intelligent Runway Digital Sig

Intelligent Runway Digital Sig

Intelligent Runway System

Intelligent Runway System

MacDonald LCD Digital Menu Boa

MacDonald LCD Digital Menu Boa

55 inch double side lcd advertising display
Model
USMART-HD550-W
Panel
Size(Diagonal)
55″(54.6″/138.7cm)
Resolution
1920*1080(16:9)
Active Area(mm)
1209.6(H)*680.4(V)
Beightness(Typ.)
3000/700nit
Contrast Ratio
1000:01:00
Connectivity
Input
RJ45/HDMI/VGA/USB
Physical SPEC
Bezel Color
Black
Bezel Width
25/25/25/25(T/B/L/R)
Dimension
1320.7*732.4*80.0mm(W*H*D)
Carton Dimension
1450*890*230mm(W*H*D)
Net Weight
42kg
Gross Weight
54kg
Mounting Hole
See Drawing
Operation Condition
Temperature
0~45 ℃
Humidity
10~80%
Power
Input Supply
AC 110~240V 50/60Hz
Consumption
440W
Internal Player
Processor Coretex
Rockchip, RK3288, CoretexA17, 1.8GHz
Memory Interace
HYNI, DDR3, 2GB
Storage
8GB
Operation System
Android 5.1
Multimedia Video Decoder
MPEG 1/2/4, H264, WMV, WV, TS, FLV,JPEG, PNG, BMP, GIF,MP3
