27inch Self-service Kiosk

Hospital Touch Screen Self-service Health File Query Machine Payment Self service Terminal multi-purpose Self-service Kiosk
Send Inquiry
Description
Argument
Products Description

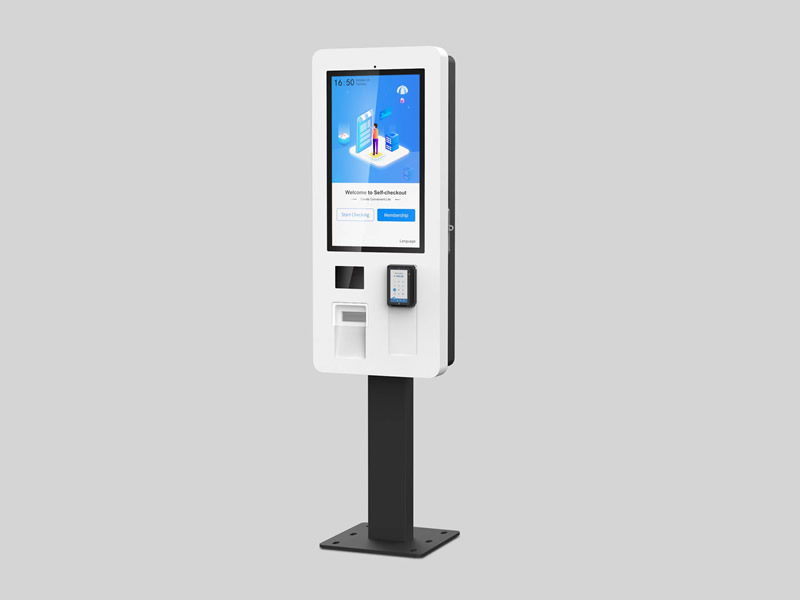

Hospital touch Screen Self-service Health File Query Machine Payment Self service Terminal multi-purpose Self-Service Kiosk

OUR KIOSKS OFFER MULTI-FUNCTIONS

It is easy to configure and can accept a number of components based on the business needs including receipt printing, card reading, barcode reading, and biometric verification.

Support both Windows and Android operation system
Support desktop/wall-mount/floor standing
Sturdy pedestal, desktop and wall mount optional
21.5" FHD industrial-grade LCD with PCAP touch panel;
5MP Camera
Splashproof and dust-prevent design, excellent cooling system
Payment Device Cradle
Invisible, neat and safe cable management
Support two kiosk    Status Indicator      WIiFi Antenna
Able to support two kiosks
NFC/RFID Reader  EMV bracket
Optional status indicator , scanner , MSR, FRID/NFC reader



Tags: 27inch Self-service Kiosk Self Service Kiosk 22inch Self-service Kiosk

Technical parameter
65 inch High Bright Outdoor E-

65 inch High Bright Outdoor E-

Intelligent Runway Digital Sig

Intelligent Runway Digital Sig

Intelligent Runway System

Intelligent Runway System

MacDonald LCD Digital Menu Boa

MacDonald LCD Digital Menu Boa

Model Number
S22+
CPU Support
Intel Core I3 Seris ,FAN
Intel Core I5 Seris,FAN
RK3568(2.0GHz)
System Memory
1 x DDR3L/DDR4, SO-DIMM, 4GB (Max. 16GB)
DDR4,4G(Onboard)
Storage Device
1x mSATA / M.2 128G (64G/256G optional )
eMMC 32G
Power
1 x 12V-5A/60W+ 1 x 24V-2A/48W
OS Support
Win10
Android 11.0
Screen Size
21.5" TFT LCD Panel
Brightness
250 cd/m²
Resolution
1920*1080
Touch Screen
True-Flat Projected Capacitive Touch
DC-IN
1 x DC In
CR
N/A
1 xRJ11
VGA
1 xVGA
N/A
HDMI
1 xHDMI
N/A
USB
2 x USB 3.0 +6 x USB 2.0 Ports
LAN
1 x LAN (10/100/1000Mb)
Audio
1 x MIC-IN & 1 x LINE-OUT
N/A
Serial port
1 x DB9(RS-232)
1 x RJ12(RS-232)
Printer
80mm thermal printer,auto cutter, 170mm/sec (max.)
Camera
5MP Single camera
Proximity Sensor
60-80cm Proximity Sensor
Speaker
2 x 2w Speaker
WIFI
mPCI-E WiFi/BT module
WiFi/BT(onboard)
Scanner
MP718(USB,1D,2D,Reading precision:=4mil,Dimension:90.5mm*35.4*80.2mm)
MSR
MSR + iButton (Combo) o r MSR +RFID (Combo) ,USB(VCOM optional) ,
1,2,3 Track, ISO7810,7811-1/2/3/4/5,IBM,AAMVA,JIS-2 Standard
NFC/RFID Reader
Support ISO/IEC 14443-A&B (MIFARE), JIS x 6319-4 (Felica),
NFC protocols - tag read/write (ISO/IEC-18092)
Status light
Printer status light
(Red light indicates error or out of thermal paper ,Blue light indicates working status )
System FAN
4 x Fans(Manufacturer default)
