Outdoor Intelligent Recognition Timing System Normal Mode or Race Mode Running Record Screen Intelligent Runway digital signage
Key Features
1. AI face recognition technology | 9. Exercise Guidance |
2. Intelligent identification timing system | 10. Commecial Informaiton Linkage |

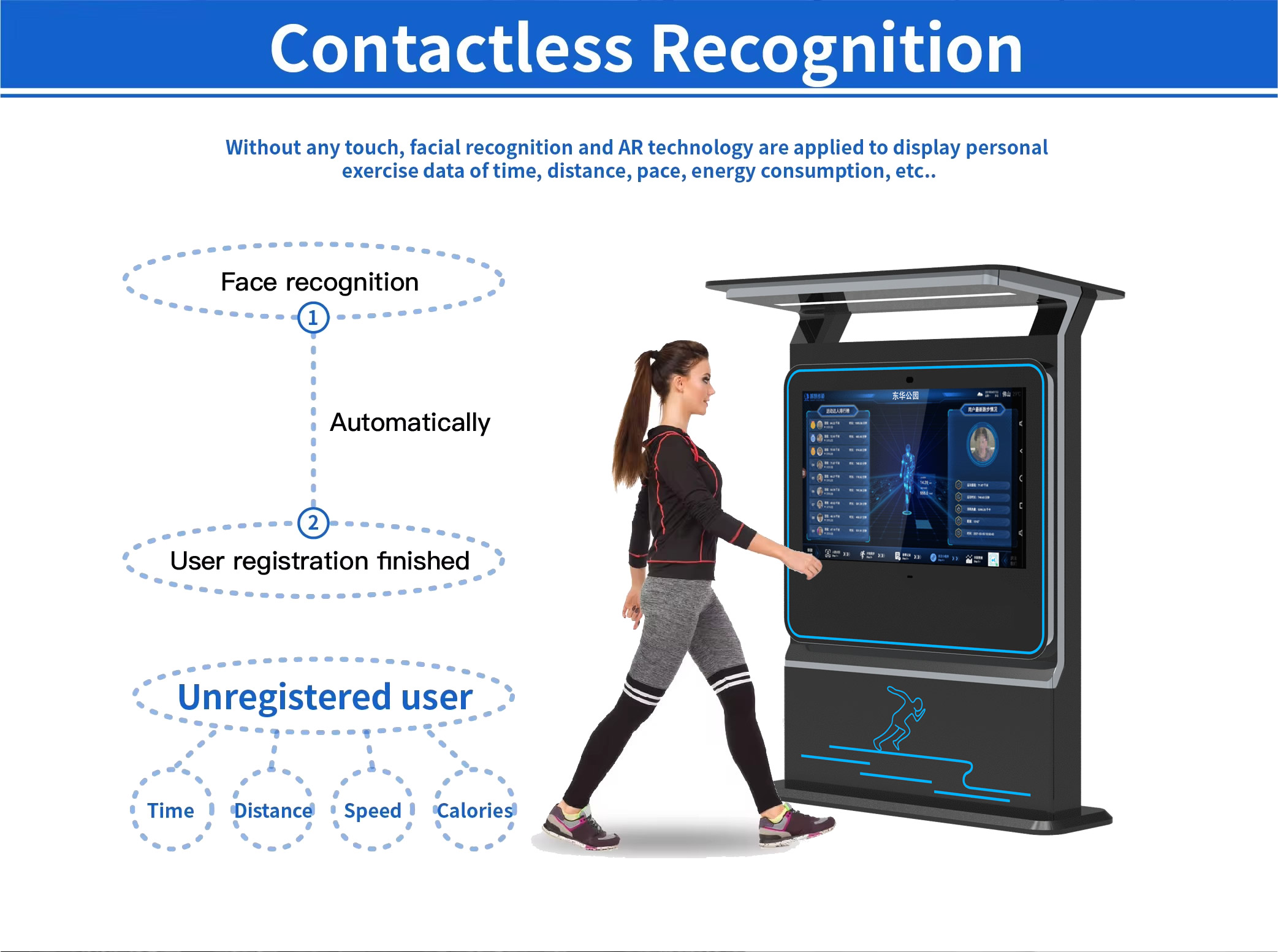

3. Contactless Interaction, Face Recognition Registration | 11. Permissions management |
4. Recognition without Bracelet or Chips | 12. Equipment management |
5. Normal Mode, Contest Mode | 13. Number of users statistics |
6. Real-time exercise data | 14. User management |
7. Information release | 15. App registration is optional |
8. Sports Ranking | 16. 4G, 5G Network is optional |
Items | Description | |
Power Supply | Power Supply | Mean Well Brand |
Input Voltage | AC 110-220V, ±10%, 50/60Hz | |
Power Consumption | TBD | |
Case | Material | Galvanized Sheet & Tempered Glass |
Surface Treatment | Flurorocarbon Painting | |
Front Panel | 6mm Tempered Glass | |
Explosion-proof & Anti-glare Glass | Optional | |
IP Rating | IP65 | |
Installation Method | Floor Standing | |
Screen | LCD Panel | BOE/LG |
Brightness | 2000cd/m2 | |
Brightness Adjust | Auto-light Sensor | |
Resolution Ratio | 1920*1080 | |
Contrast Ratio | 1300:1 | |
View Angle | 178(H/V) | |
Response Time | 6ms | |
Screen Size | 55''/65''/75''/86''/98'' 10.1''/20.5''/32'' | |
System | Operation System | Android7.1/11.0 |
DDR Size | 4G | |
NAND Flash | 32G | |
AI Recognition System | Yes | |
Nano Touch | Optional | |
Security & Protection | Power Supply Protection | Leakage, Over-load Protection |
Lightning Protection | C level | |
Explosion Protection | IK10 | |
Software | Screen Display Software | Industrial Grade |
App for Mobile Phone | Yes | |
Management System | Yes | |
Language | Chinese, English,etc.(Customized) | |
Operation Environment | Storage Temperature | -10˚C to 50˚C |
Operation Temperature | -30˚C to 55˚C (Air Cooling System) -40˚C to 65˚C(Air Conditioner System-Optional) | |
Operation Humidity | 5%-90% | |
Certificates | Certificates | CCC, CE, Rohs, FCC |
Lifetime | Lifetime | 60000h |
MTBF | MTBF | 50000h |
